The filter bag cage is used in bag house for supporting bag house filter bag.
- DESCRIPTION
- PARAMETERS

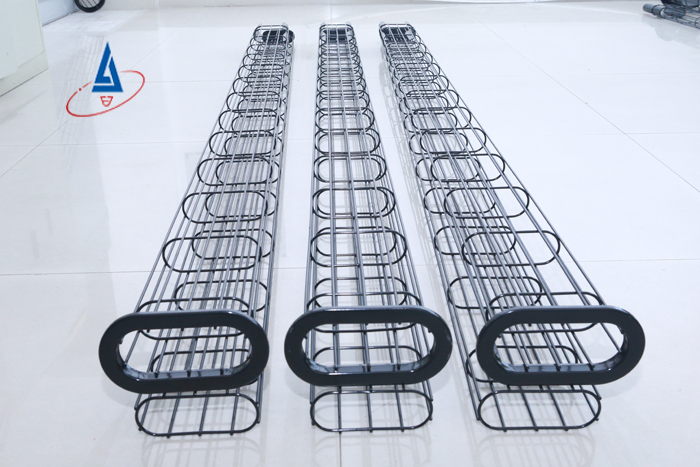

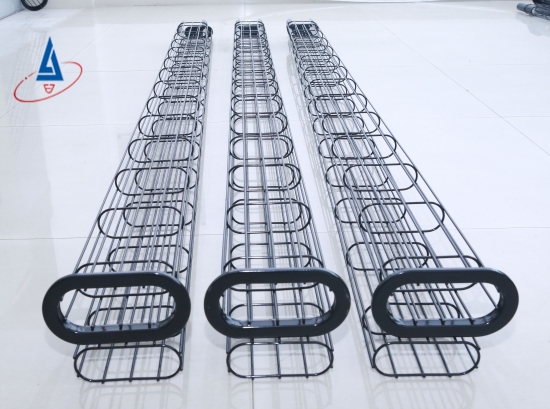

1.The description of Filter Bag Cage
Lonjing Environment Technology Co.,Ltd.(Lonjing) owns a high precision factory to manufacture filter bag cage. It is a comprehensive factory to produce different type of cages: Oval filter cage, circular cage, star cage.
The filter cages have applied in all our own projects, currently we have manufactured over 1 million meters of filter bag cages.
2. The advantages of Lonjing filter bag cage
- High precision, perimeter Tolerance -5 ~ 0 mm; end Ring Spacing Tolerance -1 ~ 0 mm
- High strength,mild steel wire with 4 mm diameter
- High anticorrosion, using electrophoresis paint
- Certificated quality , test by SGS with A level result
- High standard package for freight transporting

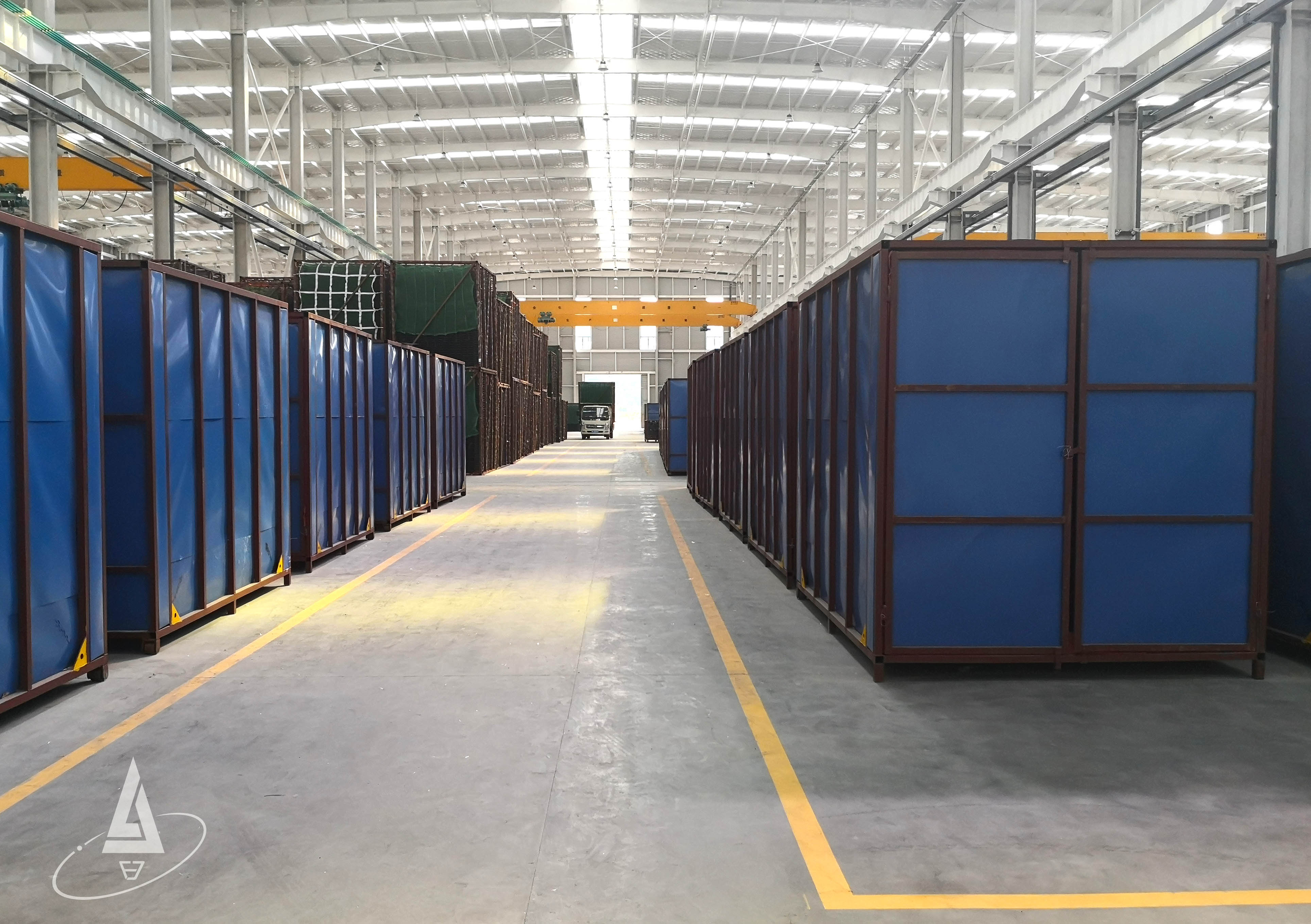

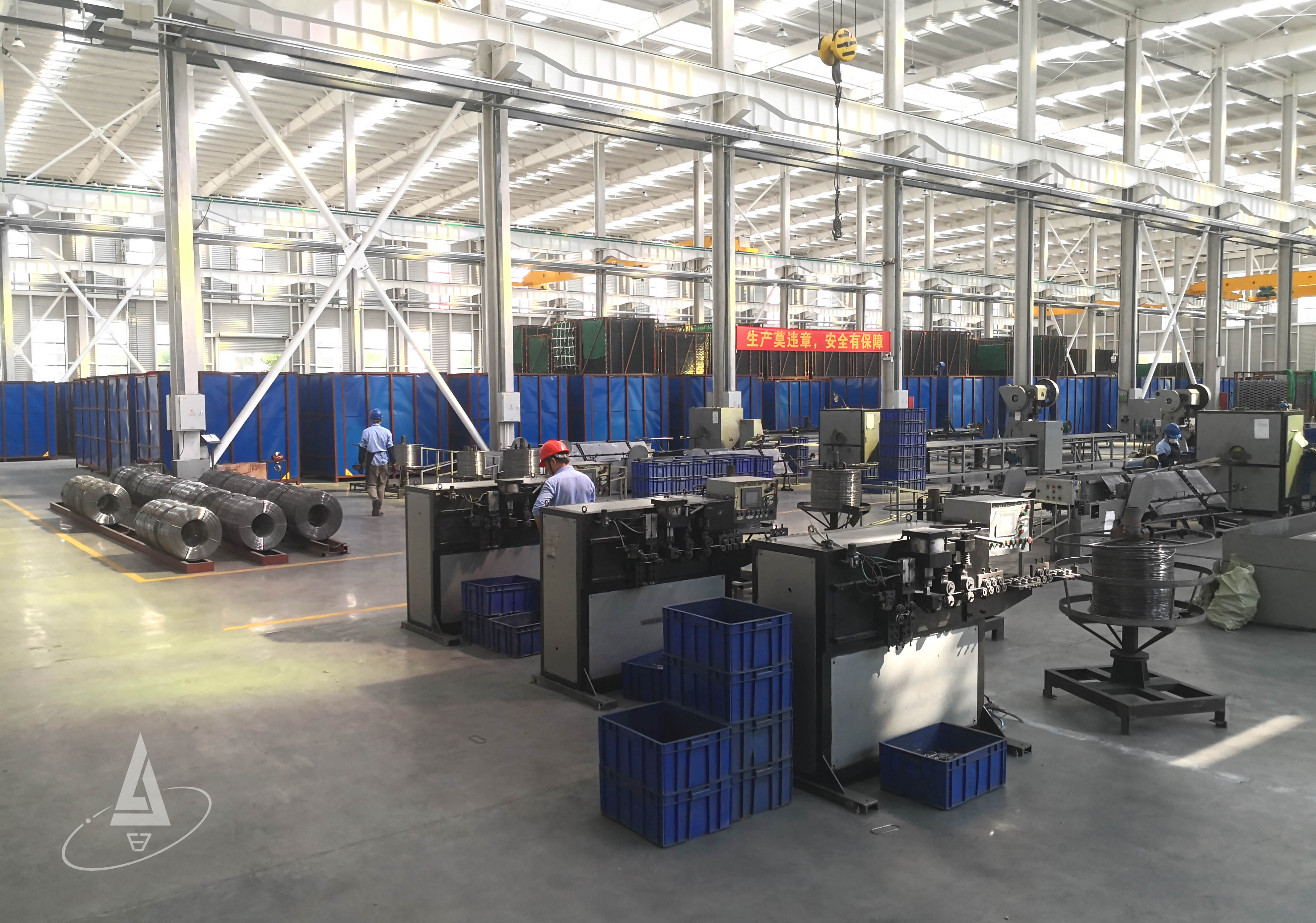

3. Filter bag cage manufacturing facility
- Factory Area: 3700m2, Goods Yard: 800m2
- Capacity: more than 4 million Meters per year
4. High standard package for freight transporting
- Module packaging & Convenient reshipment
- Economical & Concise appearance
- Secure & Effective protection
Lonjing can provide tailor made filter bag cages as per customer's parameters.
| Brand | ACT Filter bag cage |
| Application | Fabric filter, Bag house, Dust collector |
| Place of Origin | Fujian, China |
| Model | 3 sections 8m, providing tailor-made model |
| Type | Oval filter cage, round filter cage, star filter cage |
| Material | Carbon steel, providing tailor-made |
| Coat | Two -layer painting, special electrophorese paint |
-
